Introduction of High-Density Polyethylene (HDPE)
High-Density Polyethylene (HDPE) is a type of thermoplastic polymer produced from the monomer ethylene. It is known for its high strength-to-density ratio, making it a widely used material in various applications. High-density polyethylene or HDPE is a commonly used petroleum thermoplastic and the most used of the three polyethylenes for a wide range of applications. If you look at this plastic under a microscope, you will see that it has a linear structure with few branches lending to its optimal strength/density ratio.
Low-density grades of the thermoplastic are less stiff and the high-density grades have equally high crystallinity.

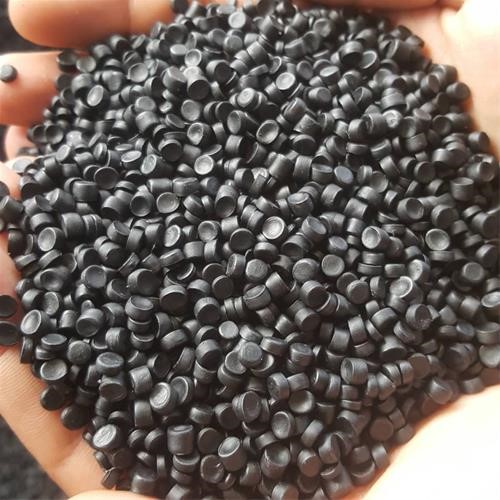

HDPE Granules are robust, versatile materials used widely in various industries due to their unique features. These synthetic plastic granulates with a nominal granule size of 5mm are highly durable, lightweight, and resistant to corrosion and moisture.
Their high-density designation means these granules have a higher strength-to-density ratio, making them stronger and more rigid than their low-density peers (LDPE). This characteristic gives them impressively better resistance to chemicals and temperature influences, and they often find applications in heavy-duty goods, including containers for household chemicals, hard hats, and insulating wires. As a result of its molecular makeup, this polymer shines brightest in applications where moisture resistance and cost-effectiveness are needed.
HDPE Key Features
- Versatile: HDPE is easily transformable into different shapes, offering flexibility in design.
- Durable: Resilient against impact and weather influences, ensuring longevity.
- Chemical Resistance: Exceptional resistance to most solvents and chemicals reduces the risk of product contamination.
- Recyclable: HDPE falls within recycling classification type 2 and is globally accepted at recycling centers.
The Advantages and Disadvantages of High-Density Polyethylene
Even with its popularity, there are some advantages and disadvantages you should consider before using HDPE for your application:
Advantages
- Cost-effective
- Can withstand temperatures from -100 to 80 degrees Celsius
- Non-leaching
- UV-resistant
- Dishwasher safe
- Resistant to most chemical solvents
- Stiff material
Disadvantages
- Poor weathering resistance
- Flammable
- Sensitive to stress cracking
- Difficult to bond
Application of High Density Polyethylene
- Plastic bottles: Most people are informally introduced to durable plastic through water bottles. HDPE is great for blow-molding applications, particularly food and beverage containers because it won’t leach into the bottles’ contents. In addition, HDPE is recyclable which makes it a great choice for these highly disposable products.
- Toys: HDPE is UV resistant which helps keep the toys resistant to the ray’s damaging and discoloring effects.
- Chemical containers: With its chemical-resistant properties, HDPE is great for laundry, shampoo, conditioner, household cleaning products, motor oil, antifreeze, and recycling bins. The strength of these bottles is increased when they’ve been colored or pigmented.
- Pipe systems: HDPE pipe grade sheet has a higher molecular weight compared to the standard HDPE used in the above examples. This strengthening with its UV-resistance makes it ideal for piping and outdoor applications. Pipe grade sheet has the ability to withstand -140 to 80 degrees Celsius. It’s durable in most chemical interactions which makes it useful in a lot of industrial applications.
The Top Uses for HDPE
- Shampoo Bottles
- Toys
- Chemical Containers
- Pipe Systems
- Milk Jugs
- Recycling Bins
- Grocery Bags
- Cereal Box Liners
- Flower Pots
High Density Polyethylene PE 100 Description
PE 100 is a grade of High-Density Polyethylene (HDPE) that is specifically formulated for high-performance pressure pipe applications. Polyethylene PE100 is well known for its increased tensile strength; stiffness; hardness and solvent resistance.|
1. Physical Properties:
– Density: Approximately 0.945 to 0.955 g/cm³.
– Tensile Strength: High tensile strength, typically around 25-35 MPa.
– Elongation at Break: Over 600%, indicating excellent ductility.
2. Chemical Properties:
– Resistance: Superior resistance to a wide range of chemicals, including most acids, alkalis, and organic solvents.
– Stress Crack Resistance: Improved resistance to environmental stress cracking compared to lower grades of HDPE.
3. Thermal Properties:
– Melting Point: Around 130-137°C.
– Thermal Conductivity: Low, beneficial for thermal insulation.
4. Mechanical Properties:
– Impact Resistance: Excellent resistance to impact, making it suitable for high-stress applications.
– Creep Resistance: Good long-term performance under continuous load.
PE 100 granulated is a premium material used in critical infrastructure and industrial applications due to its superior properties and performance. Its versatility, durability, and compliance with international standards make it a preferred choice for high-pressure and demanding environments.
Advantages of polyethylene PE 100
- Durability: Superior durability and long service life, often exceeding 50 years under normal conditions.
- Strength: High strength allows for thinner walls and lighter weight pipes while maintaining performance.
- Flexibility: Good flexibility helps in reducing the need for fittings and joints, minimizing potential leak points.
- Chemical Resistance: Excellent resistance to a wide range of chemicals and environmental factors.
- Safety: Suitable for potable water applications, meeting strict health and safety standards.
Disadvantages of polyethylene PE 100
- Cost: Generally more expensive than lower grades of polyethylene due to its enhanced properties.
- UV Sensitivity: Requires stabilization if used in applications exposed to direct sunlight for extended periods.
- Installation: While flexible, PE 100 pipes can require specialized fusion welding techniques for joining.
Application of High-Density Polyethylene PE 100
1. Pressure Pipes:
- Water Supply: Used extensively in potable water supply systems due to its high strength and durability.
- Gas Distribution: Suitable for gas pipelines owing to its resistance to environmental stress cracking and permeation.
- Sewage and Wastewater: Ideal for sewage pipes and wastewater management systems due to its chemical resistance.
2. Industrial Applications:
- Chemical Processing: Used in chemical storage tanks and process piping where resistance to corrosive substances is required.
- Mining: Suitable for slurry pipelines in mining operations.
3. Agricultural Uses:
- Irrigation Systems: Used in high-pressure irrigation systems for its durability and resistance to chemicals.
